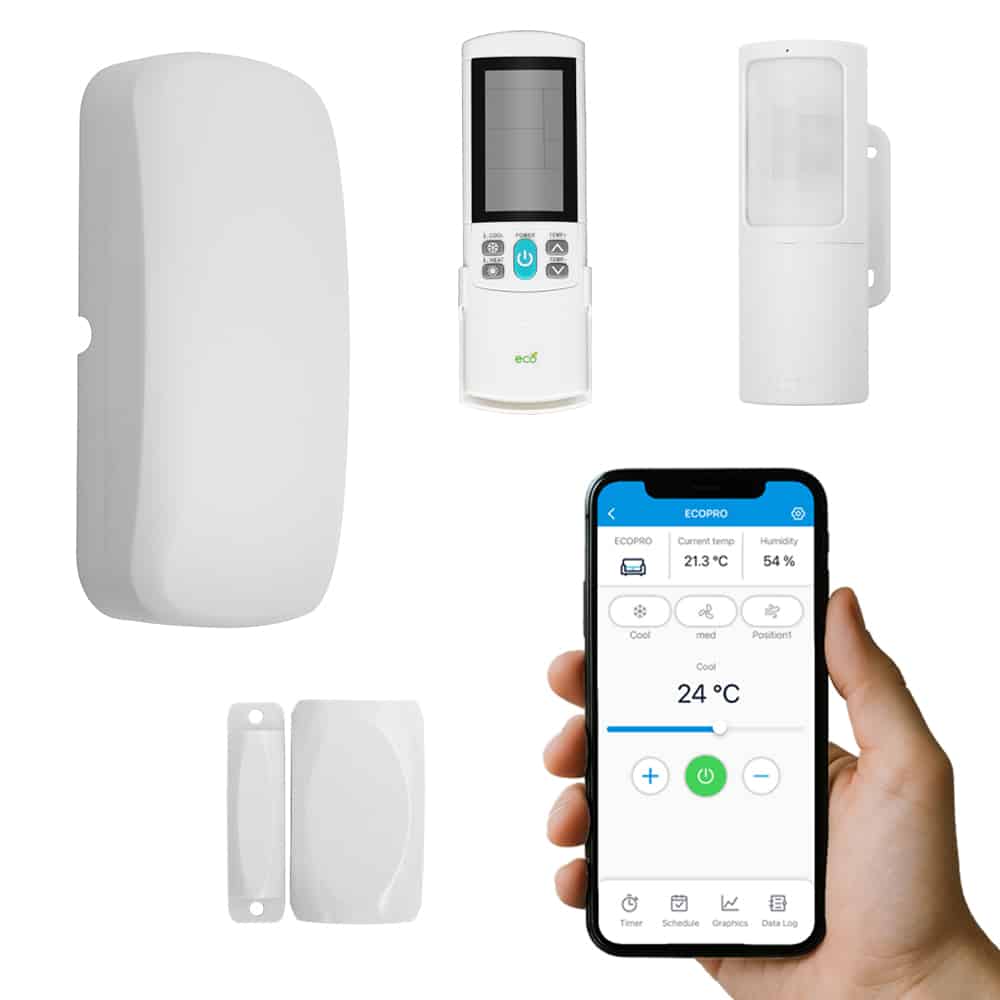

Ecosense Pro
From £195.00
- Ecosense Pro is universally compatible with all AC’s controlled using a handheld remote.

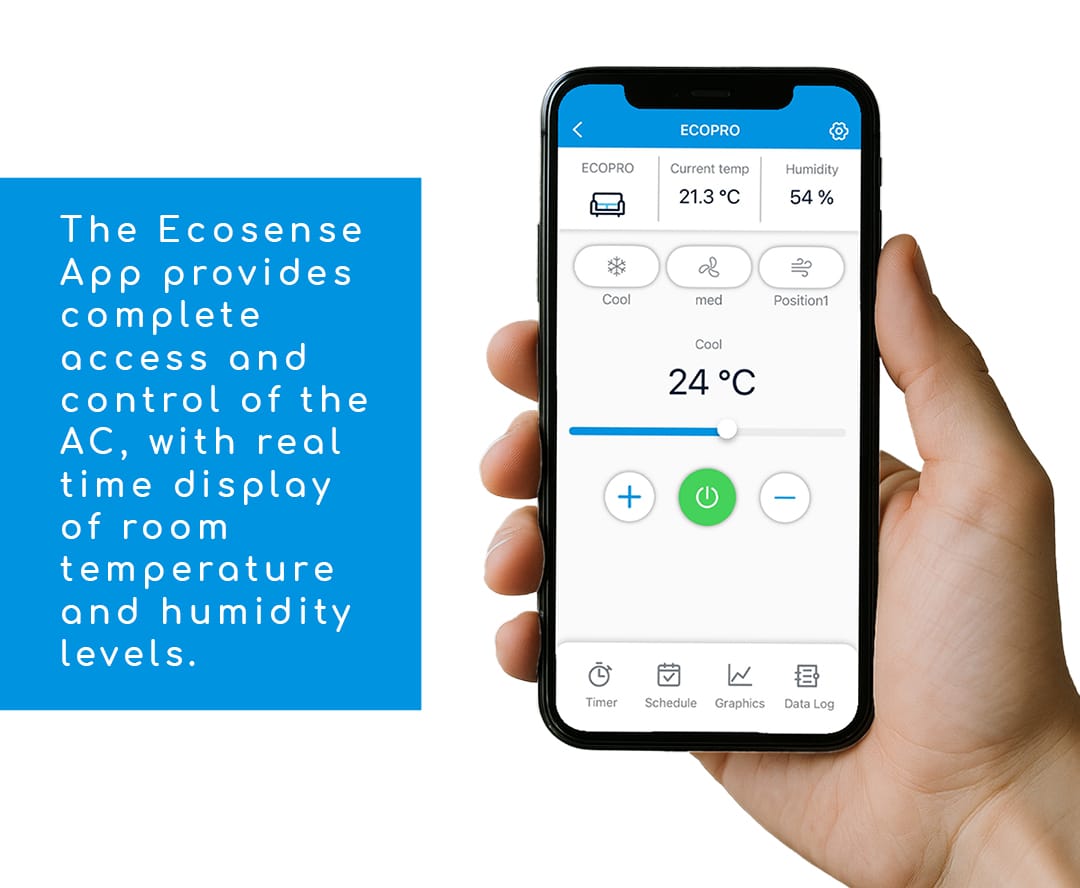

- The app provides complete remote access and control of the AC, with real time display of room temperature and humidity
- Occupancy control parameters currently in operation can be modified remotely via the app.
- The app provides the facility to create multiple schedules to both start and stop the AC.
- Up to ninety days free of charge data logging. Plus, graphical displays of how efficiently your AC is performing.

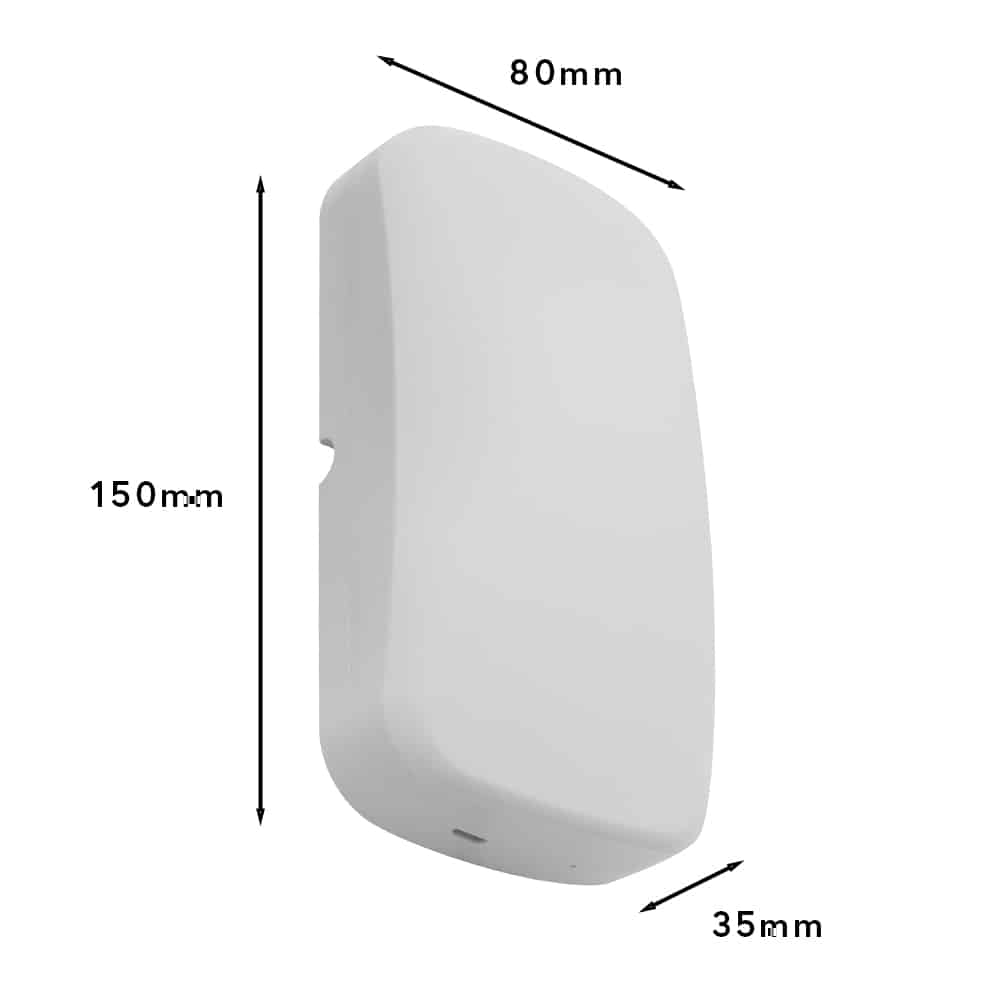

- Discreet design
- Can support up to eight wireless door/window sensors.
- DIY friendly, easy to install.
Pricing
All quantity discounts are applied on the basket page.
| Quantity | Price |
|---|---|
| 1 - 2 | £198.00 Per Unit |
| 3 - 10 | £195.00 Per Unit |
The new Eco Pro has been approved by major brands such as Mitsubishi, Daikin, Toshiba, and Fujitsu etc, and is universally compatible with any A/C that can be operated by a handheld remote. The app is free to install and will controlling up to 500 individual air conditioners via either the app or a pc program. Along with conventional occupancy-based control parameters, scheduling can also be used to switch the AC On and Off, changing mode or temperature settings, multiple times each day. The Pro system is supplied with one D/W sensor, additional sensors can be added to the system, up to a maximum of eight sensors. The system also includes a wireless motion sensor that can be fitted anywhere in the room. The system also comprises of a special energy saving remote controller. Various settings can be put in place that will restrict access to the lower temperature ranges in cool mode and the higher temperature settings in heat mode. Detailed information regarding the additional functionality and setting options can be found in the installation manual.
STANDARD MODE
The air conditioning is controlled in accordance with movement being detected after a pre-set time delay. The time delay can be adjusted between 15 -60 minutes. In short, if the timer is set to 30 minutes for example, and no movement is detected after 30 min, then the AC will be switched off (or set back*) For bedrooms etc., the controller has a built-in light sensor that detects when the room is in darkness. The controller can be set to allow the AC to run for part or all of the night.
OCCUPANCY MODE
With a wireless sensor fitted to the entry/exit doors of a room, using information from both the sensors and the controller, the logic will determine if a room is occupied regardless of movement being detected day or night. Using this method, the AC can be controlled between 5 – 60 minutes after the room has been vacated.
DOOR – WINDOW SENSORS
Up to a maximum of eight sensors can be paired to the controller. Also, a single sensor can be paired to more than one controller i.e., if there is more than one AC in the same room. The sensors do not require to be in line of site of the controller and will communicate with the controller up to approximately 20 meters depending on the construction of the room in question. When a sensor is left open for more than three minutes the AC will be terminated.

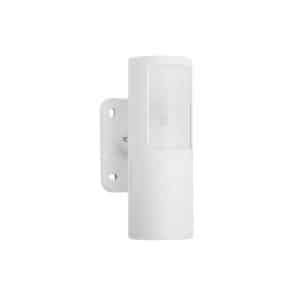

Directional PIR Motion Detectors
The wireless sensor can be fitted anywhere in the room. Additional sensors can be added to the system to control areas not in direct line of sight with the controller.
SETBACK *
The Pro can be programmed in such a way that when the occupancy rules have been met, it will either switch the AC off or, set it back to a more economic setting i.e. 26 degree cool mode at low fan speed. If a door or window sensor is open for more than three minutes the AC will be terminated.

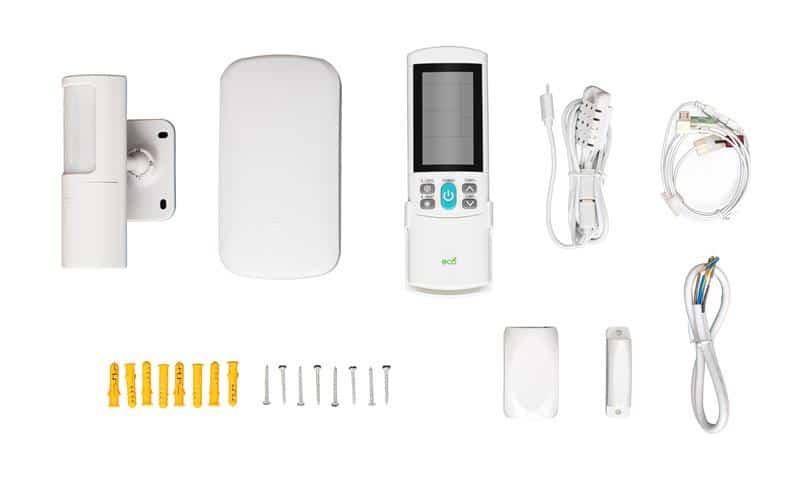

Adjustable Room PIR Sensor. (requires x2 AA batteries- not supplied)
Ecosense Pro Controller.
Ecosense Pro Remote Control – with wall mount bracket. (requires x2 AAA batteries – not supplied)
Pro Thermal Sensor Cable
Infrared Transmitter Cable
Fixing Kit (screws, raw plugs) for PIR Sensor and Pro Controller wall fitting. (Inc. reset pin tool).
Pro Door / Window Sensor (2 parts). Includes pre-fitted button Battery.
Insulated 3-core power cable. 500mm (length). *Ecosense Controller Connection for AC Cassette*
Optional Extras for Ecosense Pro
-
Door/Window sensors
From £26.50 Add to cartCompatible with the Ecosense Pro, 4000+ and 5000 Products
- A maximum of 8 D/W sensors can be paired with 1 Ecosense 4000+/5000 unit
- Maximum operating range within direct line of sight is 20 metres
- Battery life calculates to approx. 30 open / close actions per day for 3 years
